TIME® TT100 / TT120 / TT130 Series
Classic handheld digital ultrasonic thickness gauges engineered for quick, reliable wall thickness measurement and internal corrosion testing. Includes high-temperature (+300°C) and 0.01mm high-resolution models.
Individual Model Photos & Specifications
Inspect each individual model photo and select the exact configuration for your inspection environment.

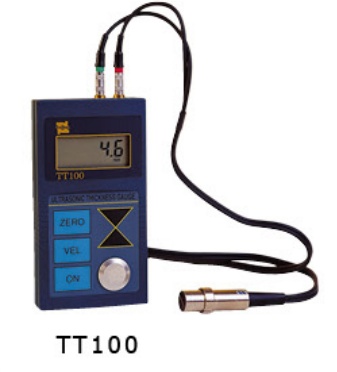

TIME® TT100
Versatile handheld thickness gauge for steel plates, pipes, boilers, and pressure vessels. Features 0.1mm resolution and automatic zero point calibration.
- Measuring Range: 1.2mm ~ 225.0mm (steel)
- Display Resolution: 0.1 mm
- Operating Temp: -10°C ~ +60°C
- Probe: Standard 5Pø10 Transducer

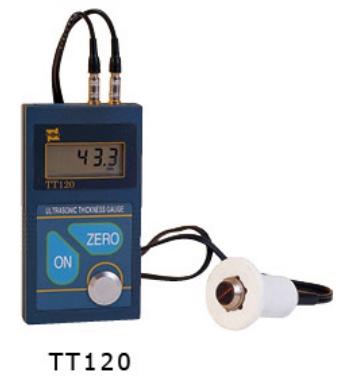

TIME® TT120
High-temperature model equipped with ZW5P transducer for testing hot operating refinery pipes, steam lines, and boilers up to +300°C.
- Measuring Range: 4.0mm ~ 80.0mm (steel)
- Display Resolution: 0.1 mm
- Operating Temp: -10°C ~ +300°C
- Probe: ZW5P High-Temperature Transducer

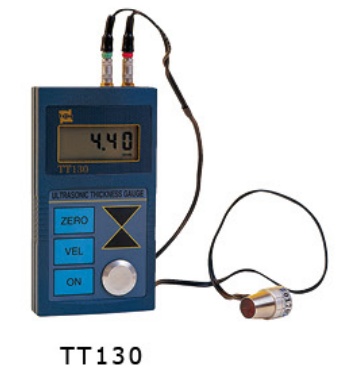

TIME® TT130
High-resolution model with 0.01mm (10-micron) display resolution for inspecting thin wall tubes, machined precision components, and fine alloys.
- Measuring Range: 1.2mm ~ 225.0mm (steel)
- Display Resolution: 0.01 mm (10 micron)
- Operating Temp: -10°C ~ +60°C
- Probe: High-Resolution Transducer
Technical Specifications Comparison
| Technical Parameter | TIME® TT100 | TIME® TT120 (High Temp) | TIME® TT130 (High Res) |
|---|---|---|---|
| Measuring Range (Steel) | 1.2 mm ~ 225.0 mm | 4.0 mm ~ 80.0 mm (high temp) | 1.2 mm ~ 225.0 mm |
| Surface Temperature | -10 °C ~ +60 °C | -10 °C ~ +300 °C | -10 °C ~ +60 °C |
| Display Resolution | 0.1 mm | 0.1 mm | 0.01 mm (0.001 in) |
| Calibration | Automatic Probe Zero Calibration | ||
| Sound Velocity Range | 1,000 m/s ~ 9,999 m/s (adjustable) | ||
| Display Screen | Digital LCD Display with Backlight | ||
| Power Supply | Standard AA Battery Operated | ||
| Target Applications | Steel plates, pipelines, boilers, pressure vessels, storage tanks, and hull structures | ||
| Target Materials | Steel, stainless steel, cast iron, aluminum, brass, copper, glass, ceramics, and rigid plastics | ||
Download Official TIME® TT100 / TT120 / TT130 PDF Catalog
Access full technical datasheets and probe selection charts directly in the official PDF document.
