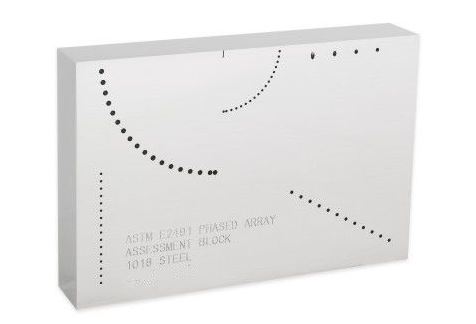

Phased Array Type B Block

Phased Array Type B Block

This block is a General purpose Phased Array calibration block used for Beam Characterization and evaluation of system performance characteristics. Use is as baseline block to determine long-term instrument performance changes, DAC curves, and evaluate linear/angular resolution, focusing ability and beam steering capability. With a variety of targets, this small, lightweight block is also perfect for customer demonstration of Phased array ultrasonic capabilities.

Conforms to:

ASTM E2491


150mm x 100mm x 25mm
