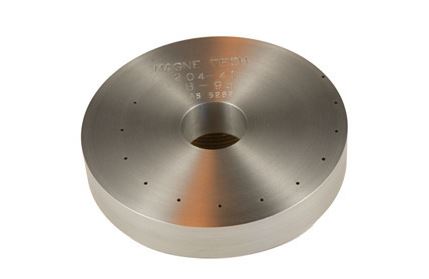

KETOS Ring
The Ketos ring is used to check overall performance of Magnetic Particle Testing system. It is a 5 inch diameter and 0.875 inch thick with a 1-1/4 inch diameter center hole. It is made from 0-1 tool steel.
Design:
Contains block includes 12 thru holes at 0.070 diameter and distance of 0.070, 0.140, 0.210, .0280, 0.350, 0.420, 0.490, 0.560, 0.630, 0.700, 0.770 and 0.840 from the OD surface.
Conforms to:
Certified to MIL-STD-1949A, ASTM E1444, McDonnel Douglas PS 21201, DPS 4.704 and SAE-AS5282.
Dimension:
5 inch diameter x 0.875 inch thick, having a 1¼ diameter center hole.
