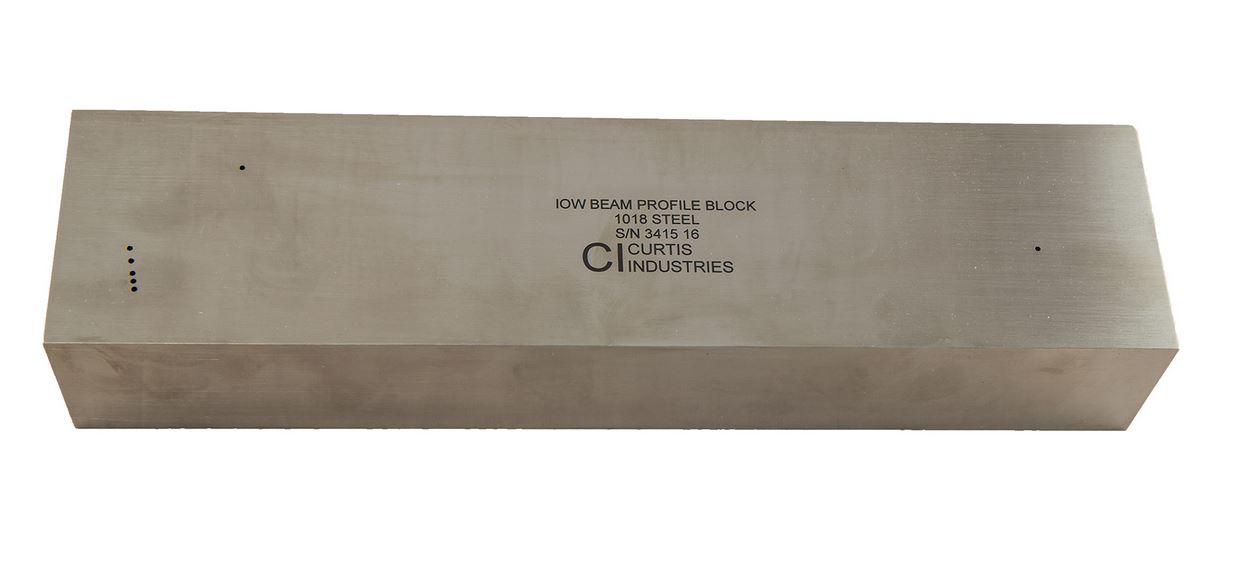

IOW Beam Profile Block

This block is used for profile measurement of angle beam transducers and measurement of transducer angles.

Design:

Contains nine 1.5mm diameter x 22mm deep side drilled holes.

Conforms to:

In accordance with British Standard 2704 requirement.

Dimension:

305mm x 75mm x 50mm (approx. 12 inch x 3 inch x 2 inch)
