Film Density meter
Also known as FILM DENSITOMETER. (download brochure)
This Film Density Meter is used to measure density of Radiographic Film (only for Industrial Radiography). Manufactured by leading X-ray research institute of China, high quality and robust construction.
PARAMETERS:
| Model | : | ZY 586 |
| Display form | : | Three numeral display with direct reading |
| Density range | : | D= 0.00 – 4.00 |
| Sampling time | : | 0.8 s |
| Uncertainty | : | ≤0.02D (0.00 – 3.00), ≤0.04 (3.00 – 5.00) |
| Light hole size | : | Dia 2mm |
| Reading Stability | : | ± 0.02 |
| Working environment | : | 0⁰C – 40⁰C, relative humidity ≤85% |
| Power Supply | : | 220 V AC, 50-60 Hz |
| Dimension | : | 300 x 110 x 58 mm (L x W x H) |
| Power Consumption | : | 10W |
| Weight | : | 1.5 KG |

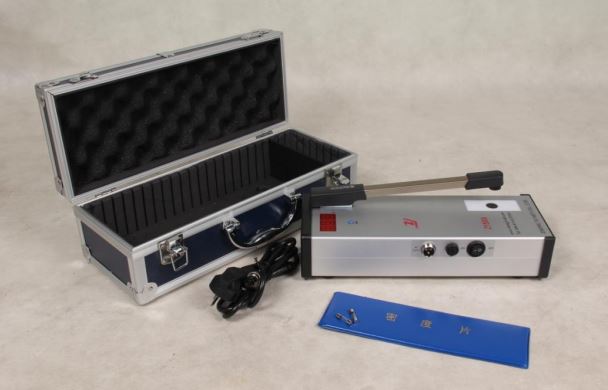

IN THE BOX:
- Densitometer
- Density Strip
- Calibration Certificate
